Customising and disabling built-in devices

The Devices tab

Connect Axiom and open the Devices tab. Devices on this Axiom lists records in Axiom’s runtime type table, including custom and suppressed records. Search by name, address text, maker or class (e.g. TEMP or ACC).

The Possible I²C column shows the address expression reported by each indexed definition: one address, alternative addresses (e.g. 0x1d,0x53), or a range. These are possible profile addresses, not proof of a connected sensor and not physical port numbers. Use Test & tune → Scan bus for connected devices.

A dash means the record reports no I²C addresses, as with direct or RSAO-only definitions. Unavailable means Axiom returned only metadata without the full record. Rows marked Not listed in runtime table use the current stored file instead. Two records with the same name can have different addresses, so each row keeps its own indexed values. The list arrives progressively and is read again after Refresh device.

The State column describes the current stored file and your browser draft. It does not prove which records were compiled into firmware:

Some profiles belong to Axiom's own hardware. For example, the battery fuel gauge (MAX17048) is marked Required by Axiom and can't be disabled.

Changes you make here only affect your draft. They take effect after you write the library and restart Axiom from the Install tab.

Viewing a definition

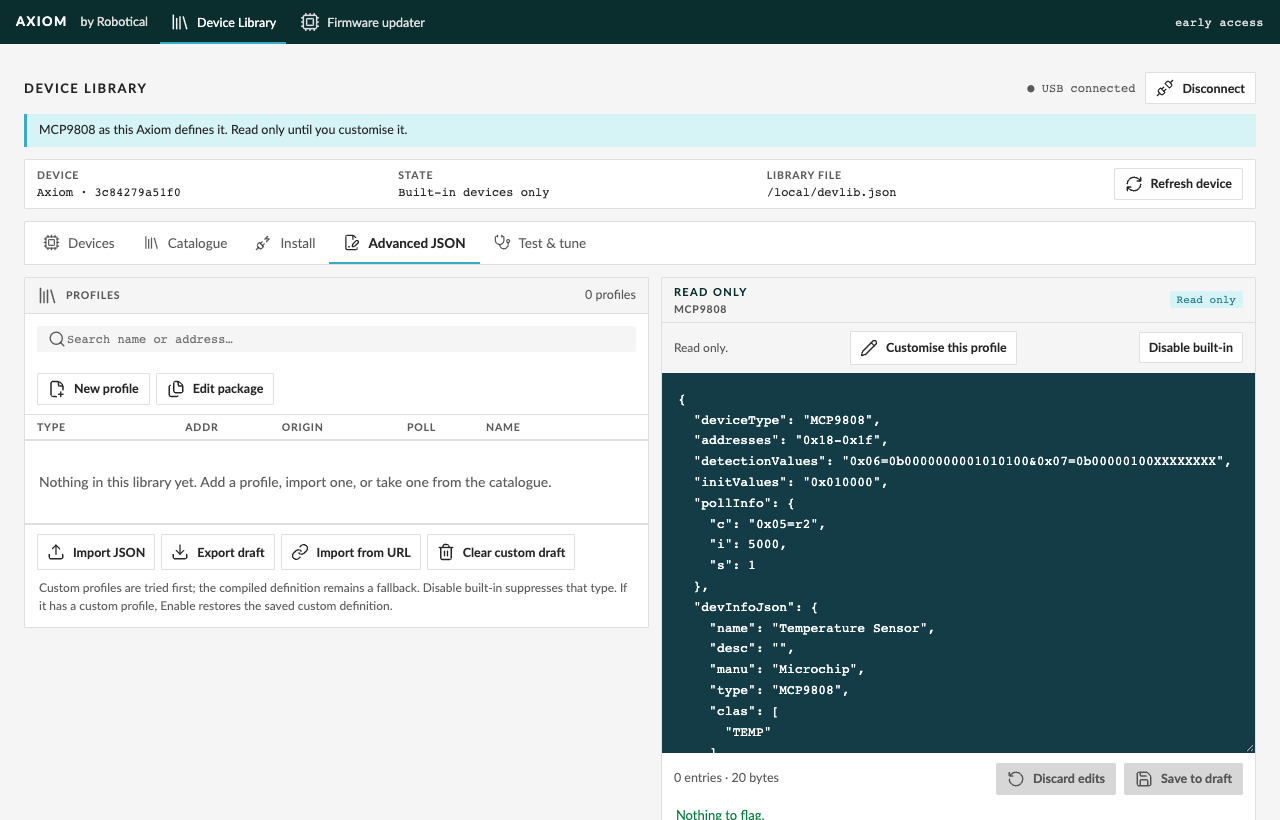

Click Definition next to a profile to open it read-only in the Advanced JSON tab. The page says, for example, MCP9808 as this Axiom defines it. Read only until you customise it.

This is a good way to learn the profile format from working examples.

Customising a built-in profile

This example makes the MCP9808 temperature sensor poll every 10 seconds instead of every 5.

1. On the Devices tab, click Definition next to MCP9808.

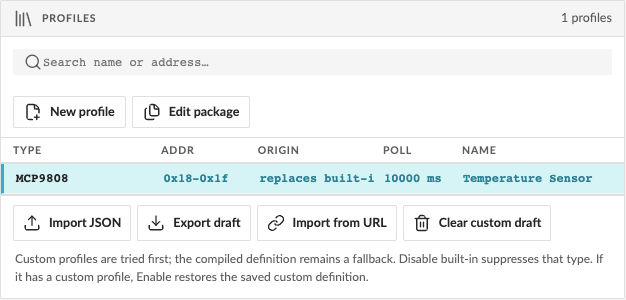

2. Click Customise this profile. A copy goes into your draft, labelled custom draft in the profile list.
3. In the JSON, find “pollInfo” and change “i”: 5000 to “i”: 10000. The value is in milliseconds.
4. Click Save to draft. The page confirms Saved to local draft. Axiom has not been changed.

How customised profiles are used: Axiom tries your copy first. If your copy doesn't identify the device, the built-in profile is still tried as a fallback. A mistake in your copy therefore usually leaves the device working with its built-in behaviour. The Library column on Test & tune reports file membership, not proof that your custom copy matched. Check the boot result and test the device’s behaviour after restarting. The firmware does not report a compiled/custom source flag for each record.

Disabling a device type

Click Disable next to a profile to stop Axiom detecting that type. Its state changes to disabled in draft and the button becomes Enable type, which undoes it.

Disabling works on the type, not on one physical device. Every device of that type stops being detected, and so does any customised copy of it. If you had a customised copy, enabling the type again brings your copy back.

Installing your changes

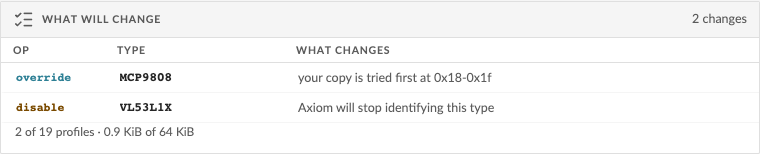

Open the Install tab. What will change lists each change:

• update: a profile already in the stored library file changes.
• disable: Axiom will stop identifying this type.
• add: a profile is added to the custom library file (see Adding a new sensor). It may customise a same-name built-in; the built-in stays as a fallback.
• remove: an entry is dropped from the stored library file.
• enable: a disabled type is enabled again.

Tick the review box, click Write to Axiom, then click Restart Axiom. Check What Axiom did with the file it has: your changes are counted under added and disabled, and rejected should be 0.

Undoing changes

• One stored customisation or added profile: on Devices, click Remove from library beside the entry. Confirm preparing a draft from Axiom’s stored file minus that entry, then review and apply from Install. Other stored entries are preserved; browser-only changes are replaced only after confirmation. For the last entry, use the revealed Remove library & restart action. See Removing your library. Advanced JSON → Remove custom still removes an entry from the local draft.
• One disabled type: click Enable type on the Devices tab. Then write and restart.
• Everything: on the Install tab, click Remove library & restart. Axiom goes back to its built-in profiles. See Backing up, sharing and removing your library.
